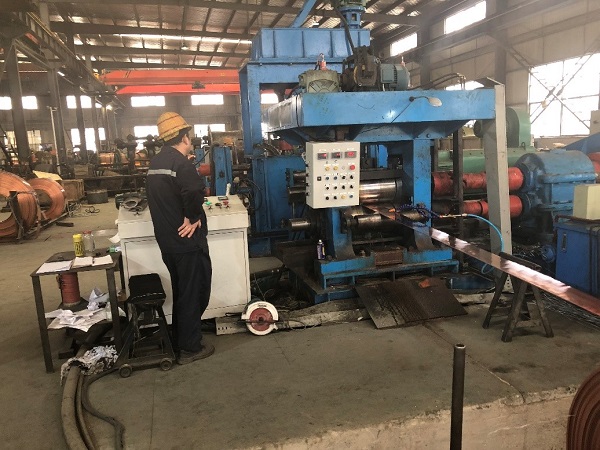

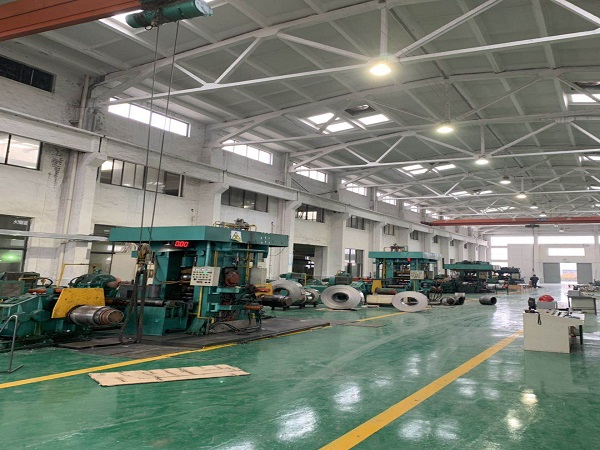

Two Rollers Vertical Rolling & Reversible Cold Mill
{dede:field.title/}
{dede:field.title/}
{dede:field.title/}
{dede:field.title/}
{dede:field.title/}
{dede:field.title/}
{dede:field.title/}
{dede:field.title/}
  • Description
  • Technical Parameters
1.     Application:
This machine is used for rolling raw material thickness ≤4mm, width ≥200mm, the material can be copper flat ,plain carbon steel, low alloy steel, stainless steel and non-ferrous metal strip. Commonly used for rough rolling and semi-fine rolling of the above materials, the finished product thickness is ≤0.7mm.

2.Rolling machine technical process:
Uncoiler(pay off)- straightening machine-vertical roller-left coiler machine-two rollers rolling machine- right coiler machine.
3.Machine technical parameter

Rolling force 800-1000 Transmission type Working roller
(KN)
Inlet size(mm) 2-4×150-300 Final size(mm) 0.7×150-300
Machine rack section 115×175、140×142 Open size 178×470、216×280
Working roller size Φ175×250-300、Φ200×400 Supporting roller size 　
Main motor Y250M-6-37 Y280M-6-55 Press motor Y100L-4-2.2
(kw) (kw)
Rolling speed 15-18 15-18 Press speed(mm/S) V-0.056
(m/min)
Gearbox JZQ750 JZQ850 Press turbine A129.5  m=7  z=7
Herringbone gear A=172  mn=8 A=203  mn=8 Main machine weight 5、8
(around)(T)

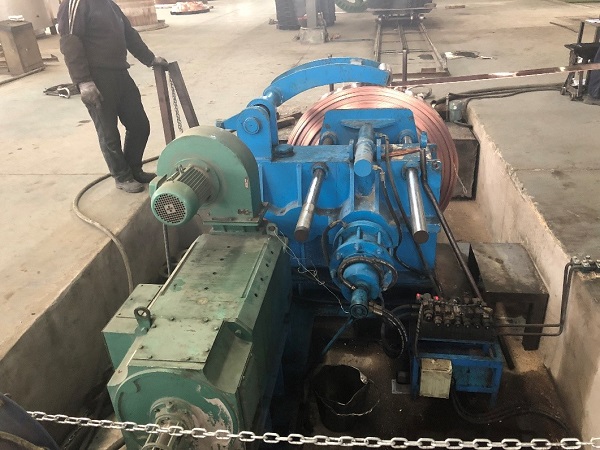

Take up Five rolls uncore roll、 Outer Size 3200×1200×2100
(Selection specification) Torque motor core roll (L×W×H)
