Upward Continuous Oxygen-free Copper Rod Casting Machine
{dede:field.title/}
{dede:field.title/}
{dede:field.title/}
{dede:field.title/}
{dede:field.title/}
{dede:field.title/}
  • Description
  • Technical Parameters
I.Application:
The Upward Continuous Oxygen-free Copper Rod Casting Machine is designed for producing high-conductivity oxygen-free copper rod, when changing the mold clamping wheel,can also produce other specifications of copper rods,copper pipe and other section shape strip product.

2. Working Process:
Cathode copper/Scrap copper→melting furnace→transition house→holding furnace→casting machine (crystal molding) →casting rod→ take-up device → on sale or further producing
3.Equipment Components

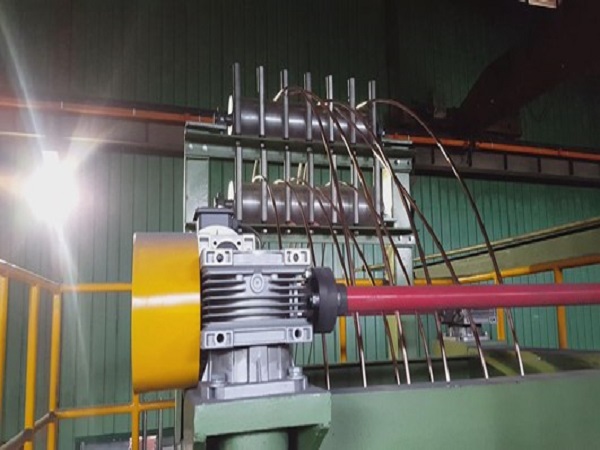

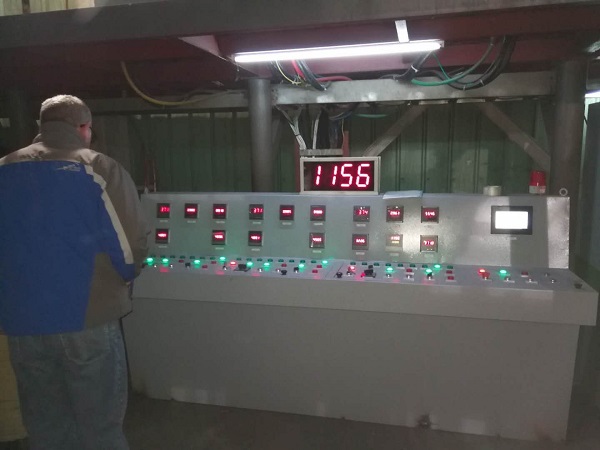

Three-combined furnace, continuous casting machine, rack of directive wheels, speed controller, two-stroke coiler, cooling system, temperature test system, and cathode charging system, electric control system.

Final Copper Rod Technical Standard
1 Density 8.9kg/dm^3
2 Tensile strength >170N/m㎡
3 Elongation >35%
4 Electrical conductivity no less than 100%IACS (2mm dia soft wire)
5 Oxygen content ≤ 10ppm

Models
No. Type Strand Qty Product Dia.(mm) Output (T/Y)
1 F6-Q3-8/20 6 8月20日 3000
2 F8-Q4-8/20 8 8月20日 4000
3 F10-Q5-8/20 10 8月20日 5000
4 F12-Q6-8/20 12 8月20日 6000
5 F16-Q12-8/20 16 8月20日 12000
